  5. Ball valve with pneumatic actuator Series BA102-D0
  6. BA102-12-D0-ABS51-C001-03-C002-31-LV-2

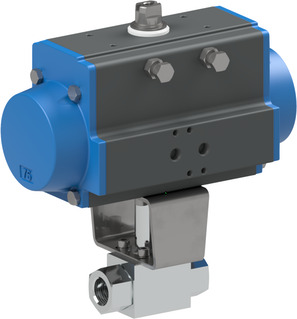

BA102-12-D0-ABS51-C001-03-C002-31-LV-2

BA102-12-D0-ABS51-C001-03-C002-31-LV-2

BA102-12-D0
Ball valve with pneumatic actuator Series BA102; Female thread; Body, Ball 1.4571/1.4404; Seals POM/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; For liquids; G 1/2"; Nominal diameter 13mm; Pressure range 0...500bar; Length 83mm; Actuator PAD075
ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.04 Kg
Short Itemnumber: BA10212D0ABS51C00103C00231LV2
https://www.stasto.ro/web/image/product.template/199956/image_1920?unique=826c69a

3.465,40 lei 3465.4 RON 3.465,40 lei

Not Available For Sale

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us

Share

dimension
Valve interface Namur 1/4"
Female thread G 1/2"
DN 13 mm
Length 83 mm
Designs
Connector size 22
design
Design With integrated LED-yellow and VDR
Electrical key figures
Voltage 24VDC / 48V/50-60Hz
pressure
Pressure range 0...500 bar
characteristics
Coil C001
Actuator PAD075
