BA091-20-S0-3C-01

Name: BA091-20-S0-3C-01
Brand: STASTO
SKU: BA091-20-S0-3C-01
Price: 999999.0 RON
Availability: InStock

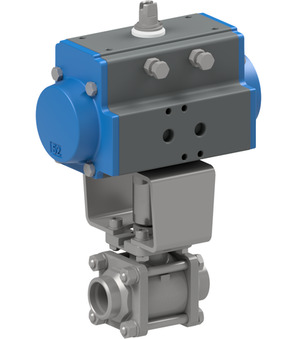

Ball valve with pneumatic actuator; V-ball 30-60°; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Pressure range Steam 0...15bar; Nominal diameter 20mm; Pressure range 0...40bar; Length 76mm; Actuator PAS0635

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.044 Kg
Short Itemnumber: BA09120S03C01

ball valve with pneumatic actuator; V-ball 30-60°; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+198°C; pressure range steam 0...15bar; nominal diameter 20mm; pressure range 0...40bar; length 76mm; actuator PAS0635

999.999,00 lei 999999.0 RON 999.999,00 lei

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BA091-20-L-3C-01 x 1.0

BA091-20-L-3C-01

Ball valve made of stainless steel; V-ball 30-60°; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-Reinforced with carbographite/FKM; Pressure range 0...64bar; Medium temperature -20...+198°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; Nominal diameter 20mm; Length 76mm

Add to Cart

PAS0635 x 1.0

Pneumatic actuator PAS0635

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm

Add to Cart

RI3783 x 1.0
