BA081-34-CL

BA081-34-CL

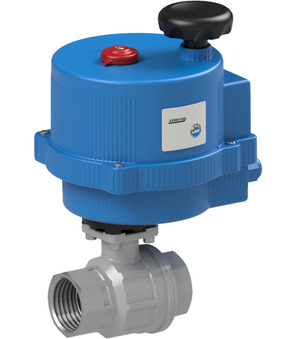

Ball valve with electrical actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature 0...+100°C; Incl. Positioner 4-20mA/0-10V; RP 3/4"; DN 20mm; Pressure range 0-64bar; Length 78mm; Operating time 8s; Voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.923 Kg
Short Itemnumber: BA08134CL
https://www.stasto.ro/web/image/product.template/147926/image_1920?unique=2cf2396

ball valve with electrical actuator; female thread; body, ball AISI 316; seals PTFE/FKM; medium temperature 0...+100°C; incl. positioner 4-20mA/0-10V; RP 3/4"; DN 20mm; pressure range 0-64bar; length 78mm; operating time 8s; voltage 24VAC/DC

4.445,20 lei 4445.2 RON 4.445,20 lei

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-64bar
Brand STASTO
Pressure range 0-64bar
Brand STASTO
Ball valve made of stainless steel BA081-34-B
BA081-34-B x 1.0 Pcs
Ball valve made of stainless steel BA081-34-B
Ball valve made of stainless steel Series BA081; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Connection G 3/4"; Nominal diameter 20mm; Pressure range 0...64bar; Length 78mm
Electrical actuator VB030-L-P0S
VB030-L-P0S x 1.0 Pcs
Electrical actuator VB030-L-P0S
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP67
