BA081-114-CH

BA081-114-CH

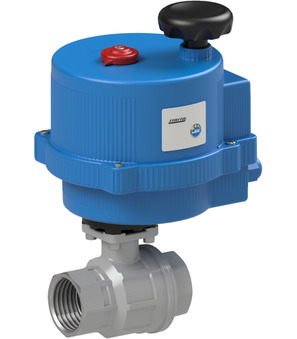

ball valve with electrical actuator; female thread; housing, ball AISI 316; seals PTFE/FKM; medium temperature 0...+100°C; RP 11/4"; DN 32mm; pressure range 0-64bar; length 100mm; operating time 8s; voltage 100-240VAC; positioner 4-20mA/0-10V

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.303 Kg
Short Itemnumber: BA081114CH
https://www.stasto.ro/web/image/product.template/177438/image_1920?unique=23c28d6

ball valve with electrical actuator; female thread; housing, ball AISI 316; seals PTFE/FKM; medium temperature 0...+100°C; RP 11/4"; DN 32mm; pressure range 0-64bar; length 100mm; operating time 8s; voltage 100-240VAC; positioner 4-20mA/0-10V

5.216,80 lei 5216.8 RON 5.216,80 lei

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-64bar
Brand STASTO
Pressure range 0-64bar
Brand STASTO
Ball valve made of stainless steel BA081-114-B
BA081-114-B x 1.0 Pcs
Ball valve made of stainless steel BA081-114-B
Ball valve made of stainless steel Series BA081; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Connection G 11/4"; Nominal diameter 32mm; Pressure range 0...64bar; Length 100mm
Electrical actuator VB030-H-P0S
VB030-H-P0S x 1.0 Pcs
Electrical actuator VB030-H-P0S
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP67
