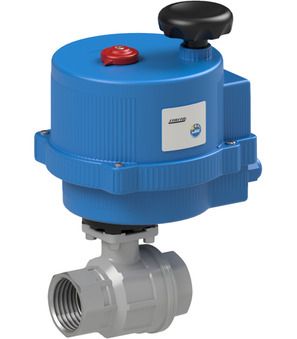

BA081-112-CL

BA081-112-CL

Ball valve with electrical actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature 0...+100°C; RP 11/2"; DN 40mm; Pressure range 0-64bar; Length 112mm; Operating time 8s; Voltage 24VAC/DC; Positioner 4-20mA/0-10V

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.24 Kg
Short Itemnumber: BA081112CL
https://www.stasto.ro/web/image/product.template/157973/image_1920?unique=3970b0b

ball valve with electrical actuator; female thread; body, ball AISI 316; seals PTFE/FKM; medium temperature 0...+100°C; RP 11/2"; DN 40mm; pressure range 0-64bar; length 112mm; operating time 8s; voltage 24VAC/DC; positioner 4-20mA/0-10V

5.016,90 lei 5016.9 RON 5.016,90 lei

Not Available For Sale

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Ball valve made of stainless steel BA081-112-B
    BA081-112-B x 1.0
    Ball valve made of stainless steel BA081-112-B
    Ball valve made of stainless steel Series BA081; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Connection G 11/2"; Nominal diameter 40mm; Pressure range 0...64bar; Length 112mm
    Add to Cart
    Electrical actuator VB030-L-P0S
    VB030-L-P0S x 1.0
    Electrical actuator VB030-L-P0S
    Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP67
    Add to Cart
