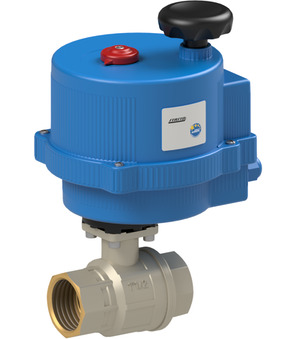

BA080-212-0H-01

Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 21/2"; Nominal diameter 65mm; Pressure range 0…25bar; Length 165mm; Flange ISO5211 F07; Square 14mm

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67

Square adapter Series VK; 17X14; Length 17mm; Material Stahl
