BA080-20-D0-01

BA080-20-D0-01

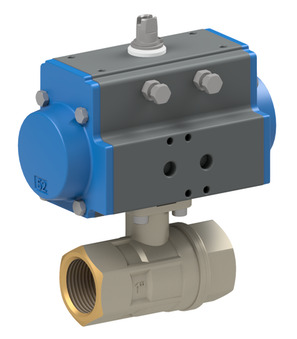

Ball valve with pneumatic actuator; Body, Ball Brass; Seals PTFE/FKM/EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-40bar; Length 138mm; Actuator PAD052-H

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.05 Kg
Short Itemnumber: BA08020D001
https://www.stasto.ro/web/image/product.template/133616/image_1920?unique=564f4a4

ball valve with pneumatic actuator; body, ball brass; seals PTFE/FKM/EPDM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 2"; nominal diameter 50mm; pressure range 0-40bar; length 138mm; actuator PAD052-H

2.877,90 lei 2877.9 RON 2.877,90 lei

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-40bar
Brand STASTO
Pressure range 0-40bar
Brand STASTO
Ball valve made of brass 2500-2"
2500-2" x 1.0 Pcs
Ball valve made of brass 2500-2"
Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0...40bar; Length 138mm; Flange ISO5211 F05; Square 11mm
Pneumatic actuator PAD052-H
PAD052-H x 1.0 Pcs
Pneumatic actuator PAD052-H
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
