BA080-12-PH

BA080-12-PH

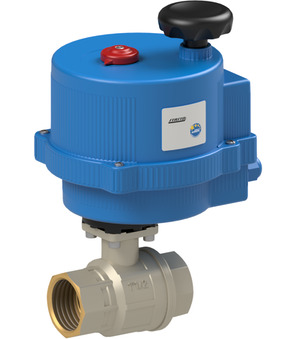

Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM; Medium temperature 0...+100°C; RP 1/2"; DN 15mm; Pressure range 0-40bar; Length 67mm; Operating time 10s; Voltage 100-240VAC; NC-Accumulator for safety position

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.753 Kg
Short Itemnumber: BA08012PH
https://www.stasto.ro/web/image/product.template/143124/image_1920?unique=1a33902

ball valve with electrical actuator; female thread; body, ball brass; seals PTFE/FKM; medium temperature 0...+100°C; RP 1/2"; DN 15mm; pressure range 0-40bar; length 67mm; operating time 10s; voltage 100-240VAC; NC-accumulator for safety position

4.414,00 lei 4414.0 RON 4.414,00 lei

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-40bar
Brand STASTO
Pressure range 0-40bar
Brand STASTO
Ball valve made of brass 2500-1/2"-A
2500-1/2"-A x 1.0 Pcs
Ball valve made of brass 2500-1/2"-A
Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0...40bar; Length 67mm; Flange ISO5211 F03; Square 9mm
Electrical actuator VB030-H-AKKU
VB030-H-AKKU x 1.0 Pcs
Electrical actuator VB030-H-AKKU
Electrical actuator Series VB-AKKU; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP67; Including Accumulator for safety position; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100…240VAC; Function NC
