BA080-10-T0

Name: BA080-10-T0
Brand: STASTO
SKU: BA080-10-T0
Price: 1584.1 RON
Availability: InStock

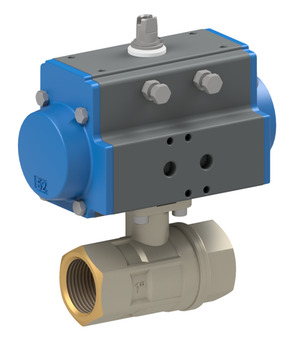

Ball valve with pneumatic actuator; Body, Ball Brass; Seals PTFE/FKM/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0-40bar; Length 90mm; Actuator PAS0525; Safety position NO

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.008 Kg
Short Itemnumber: BA08010T0

ball valve with pneumatic actuator; body, ball brass; seals PTFE/FKM/EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1"; nominal diameter 25mm; pressure range 0-40bar; length 90mm; actuator PAS0525; safety position NO

1.584,10 lei 1584.1 RON 1.584,10 lei

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BA080-10-B x 1.0

Ball valve made of brass BA080-10-B

Ball valve made of brass Series BA080-B; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0...40bar; Length 90mm; Flange ISO5211 F03; Square 9mm

Add to Cart

PAS0525-B x 1.0

Pneumatic actuator PAS0525-B

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion turned by 90°; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 6,2Nm
