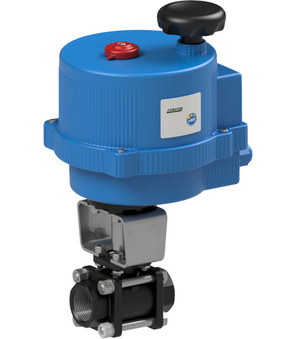

BA078-80-0L

BA078-80-0L

Ball valve with electrical actuator; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Compensation hole; Medium temperature -10...+160°C (Steam -10...+198°C); Nominal diameter 80mm; Pressure range 0…16bar; Pressure range Steam 0...15bar; Length 180mm; Operating time 27s; Voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 18.32 Kg
Short Itemnumber: BA078800L
https://www.stasto.ro/web/image/product.template/143268/image_1920?unique=3970b0b

ball valve with electrical actuator; butt weld ends; body steel; ball AISI 304; seals PTFE-reinforced/FKM; compensation hole; medium temperature -10...+160°C (steam -10...+198°C); nominal diameter 80mm; pressure range 0…16bar; pressure range steam 0...15bar; length 180mm; operating time 27s; voltage 24VAC/DC

8.302,30 lei 8302.3 RON 8.302,30 lei

Not Available For Sale

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Ball valve made of steel 80-180
    BA078-80-L x 1.0
    Ball valve made of steel 80-180
    Ball valve made of steel Series BA078-L; For steam; Full bore; Three-parts type; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -10...+198°C; Nominal diameter 80mm; Length 180mm
    Add to Cart
    Electrical actuator VB190-L
    VB190-L x 1.0
    Electrical actuator VB190-L
    Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 190Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Protection class IP67
