BA077-50-S0-01

BA077-50-S0-01

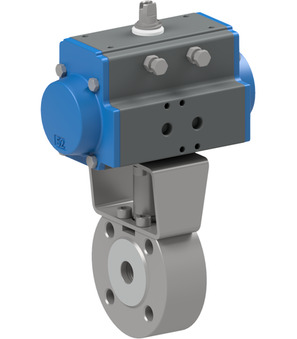

Flanged ball valve with pneumatic actuator; Flange PN16; Body, Ball 1.4401; Seals PTFE-Fibre-glass-reinforced/EPDM; Compensation hole; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -35...+140°C; Pressure range 0...16bar; Nominal diameter 50mm; Length 82mm; Actuator Low temperature design PAS1005-L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 14.26 Kg
Short Itemnumber: BA07750S001
https://www.stasto.ro/web/image/product.template/127222/image_1920?unique=f96ddcc

flanged ball valve with pneumatic actuator; flange PN16; body, ball AISI 316; seals PTFE-fibre-glass-reinforced/EPDM; compensation hole; single acting actuator; control pressure 5,5...8bar; medium temperature -35...+140°C; pressure range 0...16bar; nominal diameter 50mm; length 82mm; actuator low temperature design PAS1005-L

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    720807-50 x 1.0
    720807-50
    Flanged ball valve; Flange PN16, Full bore; Body; Ball 1.4401; Seals PTFE-Fibre-glass-reinforced/EPDM; Pressure range 0...16bar; Medium temperature -35...+140°C; Nominal diameter 50mm; Length 82mm; Compensation hole
    Add to Cart
    Pneumatic actuator PAS1005-L
    PAS1005-L x 1.0
    Pneumatic actuator PAS1005-L
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals Silicone; Temperature range -40...+85°C; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm
