BA069-12-0H

BA069-12-0H

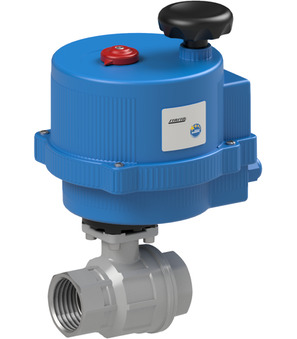

Ball valve with electrical actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 1/2"; DN 15mm; Pressure range 0-140bar; Length 66mm; Operating time 10s; Voltage 100-240VAC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.91 Kg
Short Itemnumber: BA069120H
https://www.stasto.ro/web/image/product.template/125500/image_1920?unique=3f7e6dc

ball valve with electrical actuator; female thread; body, ball AISI 316; seals PTFE/FKM; medium temperature -10...+160°C; RP 1/2"; DN 15mm; pressure range 0-140bar; length 66mm; operating time 10s; voltage 100-240VAC

2.647,40 lei 2647.4 RON 2.647,40 lei

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-140bar
Brand STASTO
Pressure range 0-140bar
Brand STASTO
700000-1/2"
700000-1/2" x 1.0 Pcs
700000-1/2"
Ball valve made of stainless steel; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Connection RP 1/2"; Nominal diameter 15mm; Pressure range 0-140bar; Length 66mm
Electrical actuator VB015-H
VB015-H x 1.0 Pcs
Electrical actuator VB015-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 15Nm; Operating time 10s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP65
RI3782 x 1.0 Pcs
RI3782
Mounting bracket; F03/F03,11-5
