BA052-50-0L

BA052-50-0L

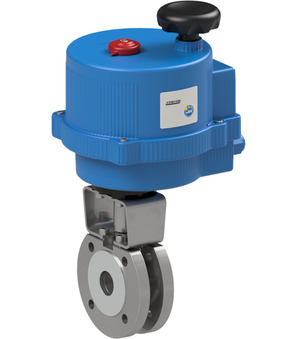

Flanged ball valve with electrical actuator; Flange PN40; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; DN 50mm; Pressure range 0-40bar; Length 82mm; Operating time 9s; Voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 10.32 Kg
Short Itemnumber: BA052500L
https://www.stasto.ro/web/image/product.template/130307/image_1920?unique=85d0799

flanged ball valve with electrical actuator; flange PN40; body, ball AISI 316; seals PTFE/FKM; medium temperature -20...+160°C; DN 50mm; pressure range 0-40bar; length 82mm; operating time 9s; voltage 24VAC/DC

6.426,50 lei 6426.5 RON 6.426,50 lei

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-40bar
Brand STASTO
Pressure range 0-40bar
Brand STASTO
Flanged ball valve 720078-50
720078-50 x 1.0 Pcs
Flanged ball valve 720078-50
Flanged ball valve Series 720078; Flange PN40; Full bore; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range 0...40bar; Medium temperature -20...+160°C; Nominal diameter 50mm; Length 82mm
Electrical actuator VB060-L
VB060-L x 1.0 Pcs
Electrical actuator VB060-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 24VAC/DC; Protection class IP67
RI3002 x 1.0 Pcs
RI3002
Mounting bracket, F07/F05-F05, Bolt 14-10
