BA052-25-S0-A

Name: BA052-25-S0-A
Brand: STASTO
SKU: BA052-25-S0-A
Price: 999999.0 RON
Availability: InStock

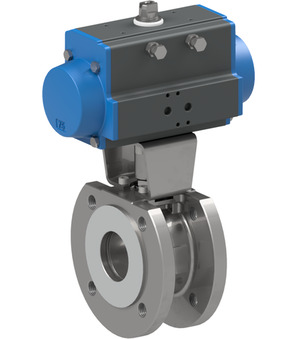

Flanged ball valve with pneumatic actuator; ATEX II 2 G/D c T3; Flange PN40; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0…40bar; Nominal diameter 25mm; Length 46mm; Actuator PAS0855

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.35 Kg
Short Itemnumber: BA05225S0A

flanged ball valve with pneumatic actuator; ATEX II 2 G/D c T3; flange PN40; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0…40bar; nominal diameter 25mm; length 46mm; actuator PAS0855

999.999,00 lei 999999.0 RON 999.999,00 lei

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BA052-25-L-A x 1.0

Flanged ball valve BA052-25-L-A

Flanged ball valve Series BA052; ATEX II 2 G/D; TA-Luft; Flange PN40; Full bore; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range 0...40bar; Medium temperature -20...+160°C; Nominal diameter 25mm; Length 46mm

Add to Cart

PAS0855 x 1.0

Pneumatic actuator PAS0855

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm

Add to Cart

RI3001 x 1.0
