BA051-80-S0-A03C

Name: BA051-80-S0-A03C
Brand: STASTO
SKU: BA051-80-S0-A03C
Price: 999999.0 RON
Availability: InStock

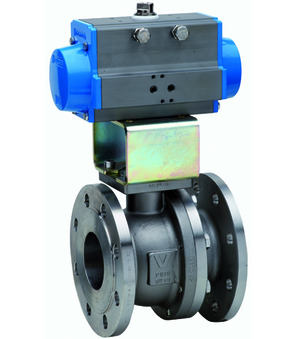

Flanged ball valve with pneumatic actuator Series BA051-S0-A03C; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Free of oil and grease for oxygen; Medium temperature -20...+60°C; Nominal diameter 80mm; Pressure range 0...16bar; Flange PN16; Length 180mm; Single acting actuator; Control pressure 5,5...8bar; Actuator PAS2005; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA05180S0A03C

flanged ball valve with pneumatic actuator series BA051-S0-A03C; Fire-Safe/Antistatik according to ATEX/TA−Luft; length according to EN558−1R27; body, ball AISI 316; seals PTFE/Graphoil/FKM; free of oil and grease for oxygen; medium temperature -20...+60°C; nominal diameter 80mm; pressure range 0...16bar; flange PN16; length 180mm; single acting actuator; control pressure 5,5...8bar; actuator PAS2005; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

999.999,00 lei 999999.0 RON 999.999,00 lei

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BA051-80-LLD-A03C x 1.0

Flanged ball valve BA051-80-LLD-A03C

Flanged ball valve Series BA051-A03C; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+60°C; With locking device; Free of oil and grease for oxygen; Nominal diameter 80mm; Pressure range 0...16bar; Flange PN16; Length 180mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Add to Cart

PAS2005 x 1.0

Pneumatic actuator PAS2005

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 200mm; Flange ISO5211 F14; Female square 36mm; Torque at 5,5bar 406Nm

Add to Cart

RI3196 x 1.0
