BA051-80-S0-A-ABS53-PI08-MS-2P-052230-PF002

Price.

15.355,00 lei
Flanged ball valve with pneumatic actuator Series BA051-S0 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Flanged ball valve with pneumatic actuator Series BA051-S0
  6. BA051-80-S0-A-ABS53-PI08-MS-2P-052230-PF002
BA051-80-S0-A-ABS53-PI08-MS-2P-052230-PF002

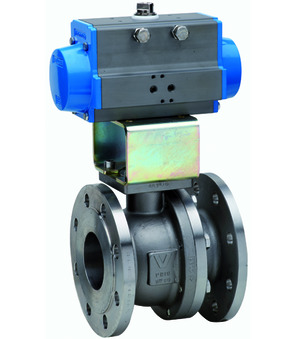

Flanged ball valve with pneumatic actuator BA051-80-S0-A
Flanged ball valve with pneumatic actuator BA051-80-S0-A
12.516,90 lei
12.516,90 lei
BA051-80-S0-A-ABS53-PI08-EPC02400-1
BA051-80-S0-A-ABS53-PI08-EPC02400-1
14.006,10 lei
14.006,10 lei

BA051-80-S0-A-ABS53-PI08-MS-2P-052230-PF002

BA051-80-S0-A
Flanged ball valve with pneumatic actuator Series BA051; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 80mm; Pressure range 0...16bar; Flange PN16; Length 180mm; Actuator PAS1255
ABS53-PI08
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 3/2-Wege-NAMUR-Magnetventil (NM32W1S-PR); Actuator PAS052-270; Connection 8mm
MS-2P-052230-PF002
Mounted inductive dual proximity switch; 8,2VDC; 2 NC-Namur-EExi; Electric connection M12, 4-pin; P&F-NCN3-F31-N4-V1; For actuator 52 To 230

Intrastat No.: 84818081
Country of origin: Italy
Weight: 36.52 Kg
Short Itemnumber:BA05180S0AABS53PI08MS2P052230PF002
https://www.stasto.ro/web/image/product.template/210296/image_1920?unique=3ad5ad2

BA051-80-S0-A
flanged ball valve with pneumatic actuator series BA051; Fire-Safe/Antistatik according to ATEX/TA−Luft; length according to EN558−1R27; body, ball AISI 316; seals PTFE/Graphoil/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 80mm; pressure range 0...16bar; flange PN16; length 180mm; actuator PAS1255
ABS53-PI08
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 3/2-Wege-NAMUR-Magnetventil (NM32W1S-PR); actuator PAS052-270; connection 8mm
MS-2P-052230-PF002
mounted inductive dual proximity switch; 8,2VDC; 2 NC-Namur-EExi; electric connection M12, 4-pin; P&F-NCN3-F31-N4-V1; for actuator 52 to 230

15.355,00 lei 15355.0 RON 15.355,00 lei

Not Available For Sale

  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
DN 80 mm
Length 170 mm
Flange PN16
Designs
Connector size 22
design
Design ATEX
pressure
Pressure range 0...16 bar
characteristics
Coil C001
Actuator PAS1255
