BA051-150-S0-A3C-ABS51-C001-03-C002-31-6-EB0X01-C0

Price.

39.840,70 lei
Flanged ball valve with pneumatic actuator Series BA051-S0 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Flanged ball valve with pneumatic actuator Series BA051-S0
  6. BA051-150-S0-A3C-ABS51-C001-03-C002-31-6-EB0X01-C0
BA051-150-S0-A3C-ABS51-C001-03-C002-31-6-EB0X01-C0
BA051-150-S0-A-01-03700000074-3900000085-WST-HVB
BA051-150-S0-A-01-03700000074-3900000085-WST-HVB
36.993,40 lei
36.993,40 lei
BA051-150-S0-A3C-ABS53-C001-03-C002-31-6-EB0X01-C0
BA051-150-S0-A3C-ABS53-C001-03-C002-31-6-EB0X01-C0
39.801,40 lei
39.801,40 lei

BA051-150-S0-A3C-ABS51-C001-03-C002-31-6-EB0X01-C0

BA051-150-S0-A3C

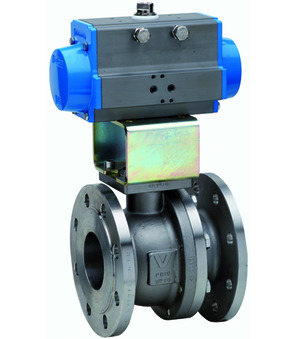

Flanged ball valve with pneumatic actuator Series BA051-S0-A3C; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 150mm; Pressure range 0...16bar; Flange PN16; Length 350mm; Actuator PAS2005; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
ABS51-C001-03-C002-31-6
ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
EB0X01-C0
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831613; Contact material Silver-nickel; Material of case Plastic; With visual position indicator On/off

Intrastat No.: 84818081
Country of origin: Italy
Weight: 58.628 Kg
Short Itemnumber:BA051150S0A3CABS51C00103C002316EB0X01C0
https://www.stasto.ro/web/image/product.template/196102/image_1920?unique=3970b0b

BA051-150-S0-A3C
flanged ball valve with pneumatic actuator series BA051-S0-A3C; Fire-Safe/Antistatik according to ATEX/TA−Luft; length according to EN558−1R27; body, ball AISI 316; seals PTFE/Graphoil/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 150mm; pressure range 0...16bar; flange PN16; length 350mm; actuator PAS2005; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness
ABS51-C001-03-C002-31-6
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC
EB0X01-C0
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic; with visual position indicator on/off

39.840,70 lei 39840.7 RON 39.840,70 lei

Not Available For Sale

  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Valve interface Namur 1/4"
DN 125 mm
Length 325 mm
Flange PN16
Designs
Connector size 22
design
Design ATEX
Electrical key figures
Voltage 24VDC / 48V/50-60Hz
pressure
Pressure range 0...16 bar
characteristics
Coil C001
Actuator PAS1605
