BA051-15-S0-A-MS-2P-052230-PF001-ABS53-PI08-EPC02400-1

Price.

999.999,00 lei
Flanged ball valve with pneumatic actuator Series BA051-S0 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Flanged ball valve with pneumatic actuator Series BA051-S0
  6. BA051-15-S0-A-MS-2P-052230-PF001-ABS53-PI08-EPC02400-1

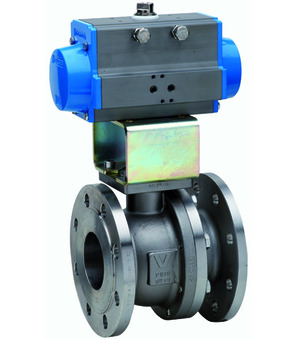

BA051-15-S0-A-MS-2P-052230-PF001-ABS53-PI08-EPC02400-1
Flanged ball valve with pneumatic actuator BA051-15-S0-A
Flanged ball valve with pneumatic actuator BA051-15-S0-A
3.345,10 lei
3.345,10 lei
Flanged ball valve with pneumatic actuator BA051-20-S0-A
Flanged ball valve with pneumatic actuator BA051-20-S0-A
3.525,10 lei
3.525,10 lei

BA051-15-S0-A-MS-2P-052230-PF001-ABS53-PI08-EPC02400-1

BA051-15-S0-A
Flanged ball valve with pneumatic actuator Series BA051; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 15mm; Pressure range 0...40bar; Flange PN40; Length 115mm; Actuator PAS0525
MS-2P-052230-PF001
Mounted inductive dual proximity switch; 2 NC-Namur-EExi; Electric connection M12, 4-pin; P&F-NCN3-F25F-N4-V1; For actuator 52 To 230
ABS53-PI08
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 3/2-Wege-NAMUR-Magnetventil (NM32W1S-PR); Actuator PAS052-270; Connection 8mm
EPC02400-1
Mounted coil Type EPC; ATEX- II 2G Ex mb IIC T5 Gb / II 2D Ex tb IIIC T95°C IP66 Db; Cable length 3m; Voltage 24VDC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.754 Kg
Short Itemnumber:BA05115S0AMS2P052230PF001ABS53PI08EPC024001
https://www.stasto.ro/web/image/product.template/182481/image_1920?unique=7038338

BA051-15-S0-A
flanged ball valve with pneumatic actuator series BA051; Fire-Safe/Antistatik according to ATEX/TA−Luft; length according to EN558−1R27; body, ball AISI 316; seals PTFE/Graphoil/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 15mm; pressure range 0...40bar; flange PN40; length 115mm; actuator PAS0525
MS-2P-052230-PF001
mounted inductive dual proximity switch; 2 NC-Namur-EExi; electric connection M12, 4-pin; P&F-NCN3-F25F-N4-V1; for actuator 52 to 230
ABS53-PI08
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 3/2-Wege-NAMUR-Magnetventil (NM32W1S-PR); actuator PAS052-270; connection 8mm
EPC02400-1
mounted coil type EPC; ATEX- II 2G Ex mb IIC T5 Gb / II 2D Ex tb IIIC T95°C IP66 Db; cable length 3m; voltage 24VDC

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
DN 15 mm
Length 115 mm
Flange PN40
Designs
Connector size 22
design
Design ATEX
Electrical key figures
Voltage 24VDC
pressure
Pressure range 0...40 bar
characteristics
Coil C001
Actuator PAS0525
