BA045-80-0L

BA045-80-0L

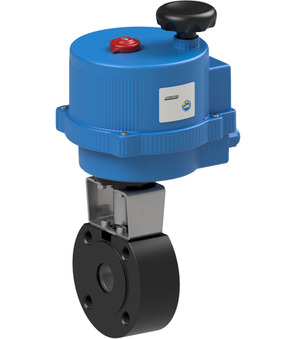

Flanged ball valve with electrical actuator; Flange PN40; Body Steel; Ball 1.4301; Seals Fibre-glass-reinforced PTFE/FKM; Medium temperature -10...+160°C; DN 80mm; Pressure range 0…40bar; Length 122mm; Operating time 50s; Voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 27.87 Kg
Short Itemnumber: BA045800L
https://www.stasto.ro/web/image/product.template/130366/image_1920?unique=78aebe9

flanged ball valve with electrical actuator; flange PN40; body steel; ball AISI 304; seals fibre-glass-reinforced PTFE/FKM; medium temperature -10...+160°C; DN 80mm; pressure range 0…40bar; length 122mm; operating time 50s; voltage 24VAC/DC

7.701,50 lei 7701.5 RON 7.701,50 lei

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0…40bar
Brand STASTO
Pressure range 0…40bar
Brand STASTO
Flanged ball valve 720008-80
720008-80 x 1.0 Pcs
Flanged ball valve 720008-80
Flanged ball valve Series 720008; Flange PN40, Full bore; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Pressure range 0...40bar; Medium temperature -20...+160°C; Nominal diameter 80mm; Length 122mm
Electrical actuator VB270-L
VB270-L x 1.0 Pcs
Electrical actuator VB270-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 270Nm; Operating time 50s; Flange ISO5211 F07/F10-Stern 22 mm; Voltage 24VAC/DC; Protection class IP67
RI3010 x 1.0 Pcs
RI3010
Mounting bracket; F10-F07; Bolt 22-14
