BA043-100-T0

Name: BA043-100-T0
Brand: STASTO
SKU: BA043-100-T0
Price: 8623.6 RON
Availability: InStock

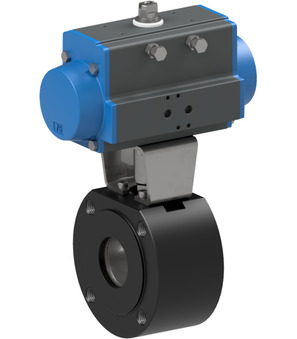

Flanged ball valve with pneumatic actuator; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Single acting actuator; NO; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Pressure range 0...16bar; Nominal diameter 100mm; Length 152mm; Actuator PAS1255

Intrastat No.: 84818081
Country of origin: Italy
Weight: 50.05 Kg
Short Itemnumber: BA043100T0

flanged ball valve with pneumatic actuator; flange PN16; body steel; ball AISI 304; seals PTFE/FKM; single acting actuator; NO; control pressure 5,5...8bar; medium temperature -10...+160°C; pressure range 0...16bar; nominal diameter 100mm; length 152mm; actuator PAS1255

8.623,60 lei 8623.6 RON 8.623,60 lei

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BA043-100-L x 1.0

Flanged ball valve BA043-100-L

Flanged ball valve Series BA043-L; Flange PN16, Full bore; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 100mm; Length 152mm

Add to Cart

PAS1255-B x 1.0

PAS1255-B

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion turned by 90°; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm

Add to Cart

RI3005 x 1.0
