BA040-100-T0

Name: BA040-100-T0
Brand: STASTO
SKU: BA040-100-T0
Price: 7159.4 RON
Availability: InStock

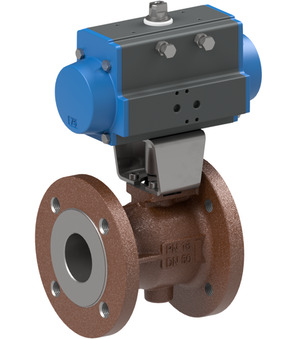

flanged ball valve with pneumatic actuator series BA040; flange PN16; body cast iron EN-GJL-250; ball AISI 304; seals PTFE/NBR; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+120°C; pressure range 0...16bar; nominal diameter 100mm; length 190mm; length EN558-1R14; actuator PAS1255-B; safety position NO

Intrastat No.: 84818081
Country of origin: Italy
Weight: 39.21 Kg
Short Itemnumber: BA040100T0

7.159,40 lei 7159.4 RON 7.159,40 lei

DN
- 100 mm
Length
- 190 mm
Pressure range
- 0...16 bar
Actuator
- PAS1255

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	100 mm
Length	190 mm
pressure
Pressure range	0...16 bar
characteristics
Actuator	PAS1255

730003-100 x 1.0

Flanged ball valve 730003-100

Flanged ball valve Series 730003; Flange PN16, Full bore; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Pressure range 0...16bar; Medium temperature -10...+120°C; Nominal diameter 100mm; Length 190mm; Length EN558-1R14

Add to Cart

PAS1255-B x 1.0

PAS1255-B

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion turned by 90°; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm

Add to Cart

RI3005 x 1.0
