BA040-100-D0-02

BA040-100-D0-02

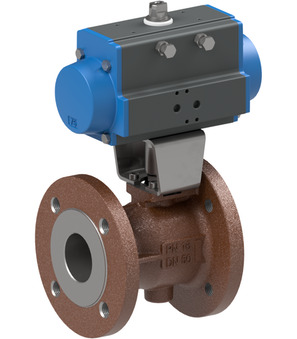

flanged ball valve with pneumatic actuator series BA040; flange PN16; body cast iron EN-GJL-250; ball AISI 304; seals PTFE/NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+120°C; pressure range 0...16bar; nominal diameter 100mm; length 190mm; length EN558-1R14; larger actuator PAD125

Intrastat No.: 84818081
Country of origin: Italy

Weight: 35.91 Kg
Short Itemnumber: BA040100D002

flanged ball valve with pneumatic actuator series BA040; flange PN16; body cast iron EN-GJL-250; ball AISI 304; seals PTFE/NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+120°C; pressure range 0...16bar; nominal diameter 100mm; length 190mm; length EN558-1R14; larger actuator PAD125

6.780,40 lei 6780.4 RON 6.780,40 lei

excl. tax

Brand
- STASTO

This combination does not exist.

Availability:

See availability

Technical specifications

Pressure range	0...16bar
Brand	STASTO

Specifications
Spare Parts

Pressure range	0...16bar
Brand	STASTO

Flanged ball valve 730003-100

730003-100 x 1.0 Pcs

Flanged ball valve 730003-100

Flanged ball valve Series 730003; Flange PN16, Full bore; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Pressure range 0...16bar; Medium temperature -10...+120°C; Nominal diameter 100mm; Length 190mm; Length EN558-1R14

Pneumatic actuator PAD125

PAD125 x 1.0 Pcs

Pneumatic actuator PAD125

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 327Nm

RI3004 x 1.0 Pcs

RI3004

Mounting bracket For Ball valve; F10/F07-F10; Bolt 17-18

Square adapter 22X17-22-Stahl

VK2217 x 1.0 Pcs

Square adapter 22X17-22-Stahl

Square adapter Series VK; 22X17; Length 22mm; Material Stahl

Accessory Products

EB0X01

Material of case: Plastic

Brand: STASTO

EB0X02

Material of case: Plastic

Brand: STASTO

EB0X04YA

Material of case: Aluminum

Brand: STASTO

EB0X05

Design: ATEX

Material of case: Plastic

Brand: STASTO
