BA040-080-T0

Name: BA040-080-T0
Brand: STASTO
SKU: BA040-080-T0
Price: 6376.5 RON
Availability: InStock

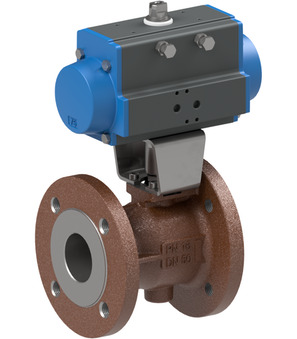

Flanged ball valve with pneumatic actuator; Flange PN16; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+120°C; Pressure range 0...16bar; Nominal diameter 80mm; Length 180mm; Length EN558-1 R14; Actuator PAS1255; Safety position NO

Intrastat No.: 84818081
Country of origin: Italy
Weight: 30.52 Kg
Short Itemnumber: BA040080T0

flanged ball valve with pneumatic actuator; flange PN16; body cast iron EN-GJL-250; ball AISI 304; seals PTFE/NBR; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+120°C; pressure range 0...16bar; nominal diameter 80mm; length 180mm; length EN558-1 R14; actuator PAS1255; safety position NO

6.376,50 lei 6376.5 RON 6.376,50 lei

excl. tax

Brand
- STASTO

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...16bar
Brand	STASTO

Specifications
Spare Parts

Pressure range	0...16bar
Brand	STASTO

730003-80 x 1.0 Pcs

Flanged ball valve 730003-80

Flanged ball valve Series 730003; Flange PN16, Full bore; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Pressure range 0...16bar; Medium temperature -10...+120°C; Nominal diameter 80mm; Length 180mm; Length EN558-1R14

PAS1255-B x 1.0 Pcs

PAS1255-B

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion turned by 90°; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm

RI3010 x 1.0 Pcs
