BA038-112-2S0-01

Name: BA038-112-2S0-01
Brand: STASTO
SKU: BA038-112-2S0-01
Price: 7497.0 RON
Availability: InStock

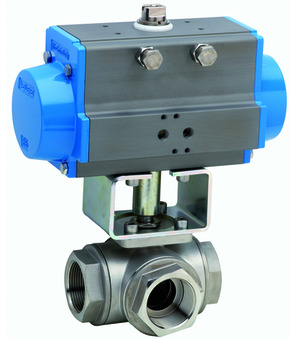

Ball valve with pneumatic actuator; Inverse direction of rotation; 3-way-type; Flow path 02 Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Single acting actuator; Reduced bore; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...64bar; G 11/2"; Nominal diameter 32mm; Length 125,8mm; Actuator PAS1155; Ball T

Intrastat No.: 84818081
Country of origin: China
Weight: 16.07 Kg
Short Itemnumber: BA0381122S001

ball valve with pneumatic actuator; inverse direction of rotation; 3-way-type; flow path 02 sealing on three ports; body, ball AISI 316; seals PTFE; single acting actuator; reduced bore; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...64bar; G 11/2"; nominal diameter 32mm; length 125,8mm; actuator PAS1155; ball T

7.497,00 lei 7497.0 RON 7.497,00 lei

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BA038-112-L x 1.0

Ball valve made of stainless steel BA038-112-L

Ball valve made of stainless steel Series BA037, BA038; 3-way-type; Female thread; Reduced bore; Body 1.4408; Ball 1.4401; Seals PTFE; Sealing on three ports; Medium temperature -20...+160°C;; G 11/2"; Nominal diameter 32mm; Pressure range 0...64bar; Length 125,8mm; Ball T

Add to Cart

PAS1155-A x 1.0

Pneumatic actuator PAS1155-A

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Inverse direction of rotation; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 71,1Nm

Add to Cart

RI3764 x 1.0
