BA036-20-0L-H

BA036-20-0L-H

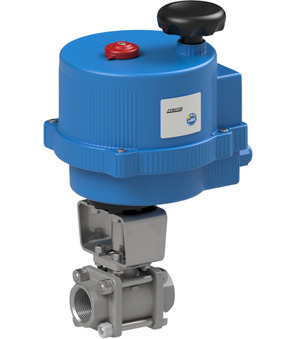

Ball valve with electrical actuator; For steam; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; RP 2"; DN 50mm; Length 136mm; Operating time 9s; Voltage 24VAC/DC; Free of oil and grease for hydrogen

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA036200LH
https://www.stasto.ro/web/image/product.template/179442/image_1920?unique=f96ddcc

ball valve with electrical actuator; for steam; three-parts type; female thread; body, ball AISI 316; seals PTFE-reinforced/FKM; pressure range steam 0...15bar; medium temperature -20...+198°C; RP 2"; DN 50mm; length 136mm; operating time 9s; voltage 24VAC/DC; free of oil and grease for hydrogen

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range Steam 0...15bar
Brand STASTO
Pressure range Steam 0...15bar
Brand STASTO
Ball valve made of stainless steel BA036-20-L-AH
BA036-20-L-AH x 1.0 Pcs
Ball valve made of stainless steel BA036-20-L-AH
Ball valve made of stainless steel Series BA036; ATEX II 2 G/D; For steam; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range 0...25bar; Steam 0...14bar; Medium temperature -20...+198°C; RP 2"; Nominal diameter 50mm; Length 136mm; Free of oil and grease for hydrogen
Electrical actuator VB060-L
VB060-L x 1.0 Pcs
Electrical actuator VB060-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 24VAC/DC; Protection class IP67
RI3031 x 1.0 Pcs
RI3031
Mounting bracket; F07/F05-F05; Bolt 14-10
