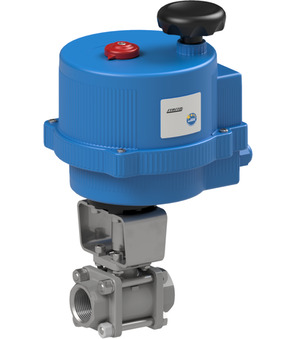

BA036-112-CL-03

Ball valve made of stainless steel Series BA036; For steam; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0…14bar; Medium temperature -20...+198°C; RP 11/2"; Nominal diameter 40mm; Length 116mm; V-Ball 90°

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 24VAC/DC; Protection class IP67

Mounting bracket; F07/F05-F05; Bolt 14-10
