BA034-65-S0

BA034-65-S0

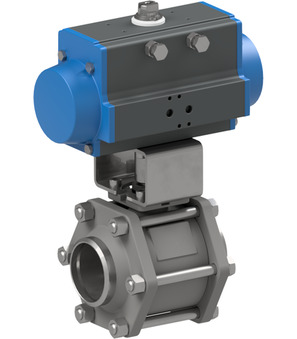

Ball valve with pneumatic actuator Series BA034-S0; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 65mm; Pressure range 0-16bar; Length 153mm; Actuator PAS1155

Intrastat No.: 84818081
Country of origin: Italy
Weight: 20.98 Kg
Short Itemnumber: BA03465S0
https://www.stasto.ro/web/image/product.template/185245/image_1920?unique=3970b0b

ball valve with pneumatic actuator series BA034-S0; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 65mm; pressure range 0-16bar; length 153mm; actuator PAS1155

7.091,50 lei 7091.5 RON 7.091,50 lei

Not Available For Sale

  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 65 mm
Length 153 mm
pressure
Pressure range 0...16 bar
characteristics
Actuator PAS1155
Ball valve made of stainless steel 712000-65
712000-65 x 1.0
Ball valve made of stainless steel 712000-65
Ball valve made of stainless steel Series 712000; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Nominal diameter 65mm; Pressure range 0-16bar; Length 153mm
Add to Cart
Pneumatic actuator PAS1155
PAS1155 x 1.0
Pneumatic actuator PAS1155
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 71,1Nm
