BA034-65-S0-02

Name: BA034-65-S0-02
Brand: STASTO
SKU: BA034-65-S0-02
Price: 999999.0 RON
Availability: InStock

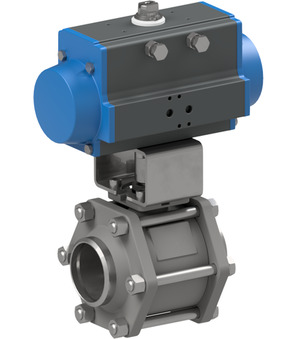

Ball valve with pneumatic actuator Series BA034; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Without dead space; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 65mm; Pressure range 0-16bar; Length 153mm; Actuator PAS1605-B; Actuator mounted 90° twisted

Intrastat No.: 84818081
Country of origin: Italy
Weight: 39.08 Kg
Short Itemnumber: BA03465S002

ball valve with pneumatic actuator series BA034; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; without dead space; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 65mm; pressure range 0-16bar; length 153mm; actuator PAS1605-B; actuator mounted 90° twisted

999.999,00 lei 999999.0 RON 999.999,00 lei

DN
- 65 mm
Length
- 153 mm
Pressure range
- 0...16 bar
Actuator
- PAS1155

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	65 mm
Length	153 mm
pressure
Pressure range	0...16 bar
characteristics
Actuator	PAS1155

BA034-65-L-02 x 1.0

Ball valve made of stainless steel BA034-65-L-02

Ball valve made of stainless steel Series BA034-L; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Without dead space; Medium temperature -20...+160°C; Nominal diameter 65mm; Pressure range 0...16bar; Length 153mm

Add to Cart

PAS1605-B x 1.0

PAS1605-B

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion turned by 90°; Diameter 160mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 202Nm

Add to Cart

RI3010 x 1.0
