BA034-40-S2

BA034-40-S2

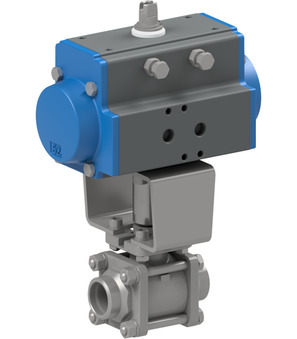

Ball valve with pneumatic actuator; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 4...8bar; Medium temperature -20...+160°C; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm; Actuator PAS1155

Intrastat No.: 84818081
Country of origin: Italy
Weight: 14.56 Kg
Short Itemnumber: BA03440S2
https://www.stasto.ro/web/image/product.template/162696/image_1920?unique=17f38fb

ball valve with pneumatic actuator; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 4...8bar; medium temperature -20...+160°C; nominal diameter 40mm; pressure range 0-25bar; length 116mm; actuator PAS1155

4.878,10 lei 4878.1 RON 4.878,10 lei

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-25bar
Brand STASTO
Pressure range 0-25bar
Brand STASTO
Ball valve made of stainless steel 712000-40
712000-40 x 1.0 Pcs
Ball valve made of stainless steel 712000-40
Ball valve made of stainless steel Series 712000; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm
Pneumatic actuator PAS1153
PAS1153 x 1.0 Pcs
Pneumatic actuator PAS1153
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 60,8Nm
RI3034 x 1.0 Pcs
RI3034
Mounting bracket; F07/F05-F05; Bolt 17-10
