BA034-15-CH

BA034-15-CH

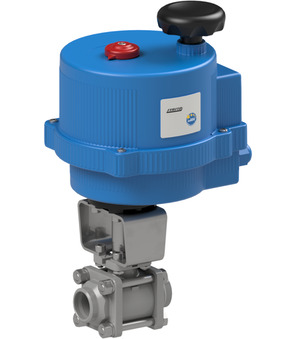

Ball valve with electrical actuator; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; DN 15mm; Pressure range 0-64bar; Length 65mm; Operating time 8s; Voltage 100-240VAC; Positioner 4-20mA/0-10V

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.826 Kg
Short Itemnumber: BA03415CH
https://www.stasto.ro/web/image/product.template/179598/image_1920?unique=51b0ef4

ball valve with electrical actuator; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; medium temperature -20...+160°C; DN 15mm; pressure range 0-64bar; length 65mm; operating time 8s; voltage 100-240VAC; positioner 4-20mA/0-10V

5.059,70 lei 5059.7 RON 5.059,70 lei

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-64bar
Brand STASTO
Pressure range 0-64bar
Brand STASTO
Ball valve made of stainless steel 712000-15
712000-15 x 1.0 Pcs
Ball valve made of stainless steel 712000-15
Ball valve made of stainless steel Series 712000; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Nominal diameter 15mm; Pressure range 0-64bar; Length 65mm
Electrical actuator VB030-H-P0S
VB030-H-P0S x 1.0 Pcs
Electrical actuator VB030-H-P0S
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP67
RI3790 x 1.0 Pcs
RI3790
Mounting bracket; F03; Bolt 11-7
