BA033-20-0L-01

BA033-20-0L-01

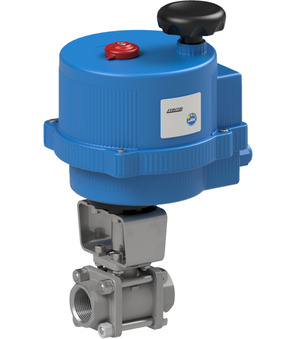

Ball valve with electrical actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 2"; DN 50mm; Pressure range 0-25bar; Length 136mm; Operating time 9s; Voltage 24VAC/DC; Feedback via potentiometer 0-5kOhm

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.65 Kg
Short Itemnumber: BA033200L01
https://www.stasto.ro/web/image/product.template/138586/image_1920?unique=224f99a

ball valve with electrical actuator; female thread; body, ball AISI 316; seals PTFE/FKM; medium temperature -20...+160°C; RP 2"; DN 50mm; pressure range 0-25bar; length 136mm; operating time 9s; voltage 24VAC/DC; feedback via potentiometer 0-5kOhm

5.824,70 lei 5824.7 RON 5.824,70 lei

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-25bar
Brand STASTO
Documents
Data sheets, drawings and CAD files
Pressure range 0-25bar
Brand STASTO

BA033-20-0L-01

Documents

1 Documents 7 Languages

Czech / Čeština
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Ball valve made of stainless steel 710000-2"
710000-2" x 1.0 Pcs
Ball valve made of stainless steel 710000-2"
Ball valve made of stainless steel Series 710000; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-25bar; Length 136mm
VB060-L-P0T
VB060-L-P0T x 1.0 Pcs
VB060-L-P0T
Electrical actuator; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-star 14mm; Voltage 24VAC/DC; Protection class IP67; Feedback via potentiometer 0-5kOhm
RI3031 x 1.0 Pcs
RI3031
Mounting bracket; F07/F05-F05; Bolt 14-10
