BA010-34-3S1

BA010-34-3S1

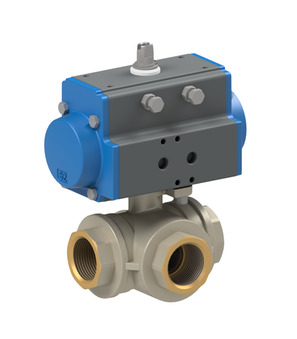

Ball valve with pneumatic actuator; 3-way-type; Sealing on three ports; Body, Ball Brass; Seals PTFE/FKM/EPDM; Single acting actuator; Control pressure 3...8Bar; Medium temperature -20...+160°C; RP 3/4"; Nominal diameter 20mm; Pressure range 0-30Bar; Length 87mm; Actuator PAS1001; Ball T; Flow path 03

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.99 Kg
Short Itemnumber: BA010343S1
https://www.stasto.ro/web/image/product.template/134519/image_1920?unique=01498ce

ball valve with pneumatic actuator; 3-way-type; sealing on three ports; body, ball brass; seals PTFE/FKM/EPDM; single acting actuator; control pressure 3...8bar; medium temperature -20...+160°C; RP 3/4"; nominal diameter 20mm; pressure range 0-30bar; length 87mm; actuator PAS1001; ball T; flow path 03

3.574,60 lei 3574.6 RON 3.574,60 lei

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-30Bar
Brand STASTO
Pressure range 0-30Bar
Brand STASTO
Ball valve made of brass 3500-3/4"
3500-3/4" x 1.0 Pcs
Ball valve made of brass 3500-3/4"
Ball valve made of brass Series 3600, 3500; 3-way-type; Sealing on three ports; Female thread; Seals PTFE/FKM/EPDM; Medium temperature -20...+160°C; Hand lever Steel; RP 3/4"; Nominal diameter 20mm; Pressure range 0-30bar; Length 87mm; Ball T
Pneumatic actuator PAS1001
PAS1001 x 1.0 Pcs
Pneumatic actuator PAS1001
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 24,6Nm
04808007001 x 1.0 Pcs
04808007001
Mounting bridge; Zinc plated steel; F05/F07-F05; Height 60mm
A4/338/99 x 1.0 Pcs
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
