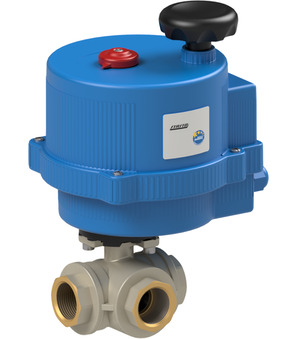

Ball valve with electrical actuator BA009-34-0D

Name: Ball valve with electrical actuator BA009-34-0D
SKU: BA009-34-0D
Price: 477.26 EUR
Availability: InStock

Ball valve with electrical actuator Series 8E029, 8E028; 3-way-type; Sealing on three ports; Female thread; Body, Ball Brass; Seals PTFE/FKM; Medium temperature 0...+100°C; RP 3/4"; DN 20mm; Pressure range 0-30bar; Length 87mm; Operating time 10s; Voltage 12VAC/DC; Ball L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.54 Kg
Short Itemnumber:BA009340D

ball valve with electrical actuator series 8E029, 8E028; 3-way-type; sealing on three ports; female thread; body, ball brass; seals PTFE/FKM; medium temperature 0...+100°C; RP 3/4"; DN 20mm; pressure range 0-30bar; length 87mm; operating time 10s; voltage 12VAC/DC; ball L

477,26 € 477.2550292018171 EUR 477,26 €

Female thread
- RP 3/4"
DN
- 20 mm
Length
- 87 mm
Ball
- L
Voltage
- 24VAC/DC
Pressure range
- 0...30 bar
Actuator
- VB015L24
Operating time
- 10 s

This combination does not exist.

Availability:

In den Warenkorb

Specifications
Spare Parts

dimension
Female thread	RP 3/4"
DN	20 mm
Length	87 mm
Designs
Ball	L
Electrical key figures
Voltage	24VAC/DC
pressure
Pressure range	0...30 bar
characteristics
Actuator	VB015L24
Operating time	10 s

3600-3/4" x 1.0

Ball valve made of brass 3600-3/4"

Ball valve made of brass Series 3600, 3500; 3-way-type; Sealing on three ports; Female thread; Seals PTFE/FKM/EPDM; Medium temperature -20...+160°C; Hand lever Steel; RP 3/4"; Nominal diameter 20mm; Pressure range 0-30bar; Length 87mm; Ball L

Add to Cart

VB015-L-12 x 1.0

Electrical actuator VB015-L-12

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 15Nm; Operating time 10s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 12VAC/DC; Protection class IP65

Add to Cart
