AZ1N5H2-5-80-PIB

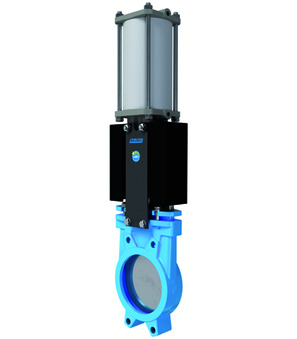

Gate valve with double acting pneumatic actuator; Wafer type; Body Cast iron EN-GJL-250; Gate 1.4301; Soft sealed EPDM; Abrasion protection; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90 °C; DN 80mm; Length 56mm; Pressure range 0-10bar; Prepared for 2 inductive limit switches M18
Country of origin: Spain
Weight: 10.5 Kg
Short Itemnumber: AZ1N5H2580PIB
gate valve with double acting pneumatic actuator; wafer type; body cast iron EN-GJL-250; gate AISI 304; soft sealed EPDM; abrasion protection; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90 °C; DN 80mm; length 56mm; pressure range 0-10bar; prepared for 2 inductive limit switches M18
