ABS40-01

ABS40-01

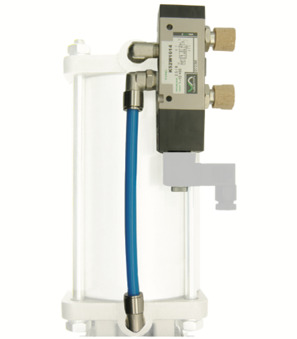

Mounted pilot valve Series ABS; Suitable for Pneumatically operated knife gate valves; 5/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Type of coil CS; Connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm; Pressure inlet: Straight male stud fitting Diameter 10mm

Intrastat No.: 84812090
Country of origin: Italy
Weight: 0.29 Kg
Short Itemnumber: ABS4001
https://www.stasto.ro/web/image/product.template/177068/image_1920?unique=ca83db0

mounted pilot valve series ABS; suitable for pneumatically operated knife gate valves; 5/2-way solenoid valve; flow control valves; silencer; mounted at cylinder; type of coil CS; connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm; pressure inlet: straight male stud fitting diameter 10mm

795,10 lei 795.1 RON 795,10 lei

Not Available For Sale

excl. tax
  • DN
  • Connector size
  • Coil
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

DN 50...400 mm
Brand STASTO
DN 50...400 mm
Brand STASTO
5/2-way valve K52W1014
K52W1014 x 1.0 Pcs
5/2-way valve K52W1014
5/2-way valve Series K5.W; Pilot-operated; Pressure range 2,5...9bar; Actuation Electrical/spring; Type of coil CS; Connector size 16mm; Connection 1/4"; Nominal diameter 8mm; Flow rate 1300Nl/min; Suitable silencer alle
Throttle RSS-1/4"
RSS-1/4" x 2.0 Pcs
Throttle RSS-1/4"
Throttle Series RSS; Silencer; Self blocking; Connection 1/4"; DN 6,5mm
Plastic hose PA-8/6-BU-1
PA-8/6-BU-1 x 1.0 m
Plastic hose PA-8/6-BU-1
Plastic hose Series PA; Material Polyamide; Multiplier for operating pressure 30°C = 0,87 / 80°C = 0,43; Vacuum -0,87bar; Temperature range -60...130°C; Outside diameter 8mm; Inside diameter 6mm; Operating pressure at 23°C 20bar; Colour blau
