AB1N2I3-5V-500-B

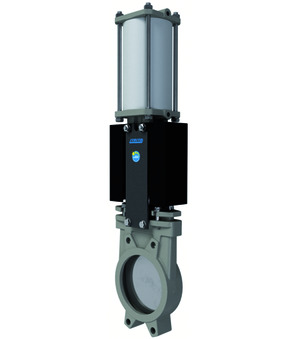

Gate valve with double acting pneumatic actuator; Wafer type; Body 1.4408; Gate 1.4401; Soft sealed FKM; Packing PTFE-Synthetic/FKM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Medium temperature -5...+200 °C; DN 500mm; Length 110mm; Pressure range 0-3bar
Intrastat No.: 84818063
Country of origin: Spain
Weight: 0.37 Kg
Short Itemnumber: AB1N2I35V500B
Country of origin: Spain
Weight: 0.37 Kg
Short Itemnumber: AB1N2I35V500B
gate valve with double acting pneumatic actuator; wafer type; body AISI 316; gate AISI 316; soft sealed FKM; packing PTFE-synthetic/FKM; screws stainless steel; nominal flange pressure PN10; sealed in both directions; control pressure 5,5...8bar; medium temperature -5...+200 °C; DN 500mm; length 110mm; pressure range 0-3bar
