A3N2I2-5-100-B

Name: A3N2I2-5-100-B
Brand: STASTO
SKU: A3N2I2-5-100-B
Price: 999999.0 RON
Availability: InStock

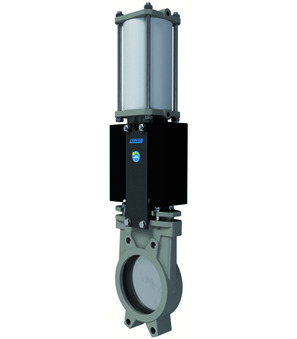

Knife gate valve with double acting actuator; Wafer type; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN16; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90 °C; DN 100mm; Length 50mm; Pressure range 0-10bar

Intrastat No.: 84818061
Country of origin: Spain
Weight: 12.35 Kg
Short Itemnumber: A3N2I25100B

knife gate valve with double acting actuator; wafer type; body AISI 316; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN16; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90 °C; DN 100mm; length 50mm; pressure range 0-10bar
