A1N6I3-5V-400-PM-01

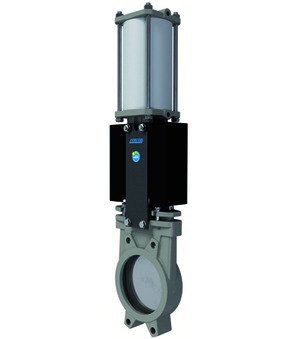

Knife gate valve with double acting actuator; Wafer type; Body 1.4408; Gate 1.4401; Soft sealed FKM; Packing PTFE-Synthetic/FKM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 4...8bar; Medium temperature -15...+180 °C; DN 400mm; Length 100mm; Pressure range 0-5bar; ATEX zone 1; Prepared for 2 mechanical switches MSU01; Protection plates Steel
Intrastat No.: 84818063
Country of origin: Spain
Weight: 0.4 Kg
Short Itemnumber: A1N6I35V400PM01
Country of origin: Spain
Weight: 0.4 Kg
Short Itemnumber: A1N6I35V400PM01
knife gate valve with double acting actuator; wafer type; body AISI 316; gate AISI 316; soft sealed FKM; packing PTFE-synthetic/FKM; nominal flange pressure PN10; unidirectional sealed; control pressure 4...8bar; medium temperature -15...+180 °C; DN 400mm; length 100mm; pressure range 0-5bar; ATEX zone 1; prepared for 2 mechanical switches MSU01; protection plates steel
| Design | ATEX |
No spare parts are available for this product.
