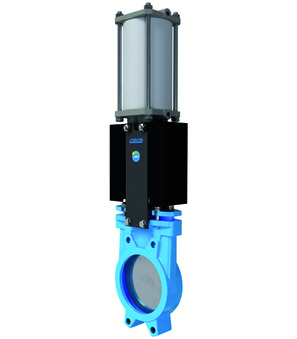

A1N6H3-5S-100-B
Knife gate valve with double acting actuator; Wafer type; Body Cast iron EN-GJL-250; Gate 1.4301; Soft sealing with fixing ring and abrasion protection FKM; Packing PTFE-Synthetic/EPDM With Scraper With Copper; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90 °C; DN 100mm; Length 56mm; Pressure range 0-10bar
Country of origin: Spain
Weight: 12.65 Kg
Short Itemnumber: A1N6H35S100B
knife gate valve with double acting actuator; wafer type; body cast iron EN-GJL-250; gate AISI 304; soft sealing with fixing ring and abrasion protection FKM; packing PTFE-synthetic/EPDM with scraper with copper; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90 °C; DN 100mm; length 56mm; pressure range 0-10bar
