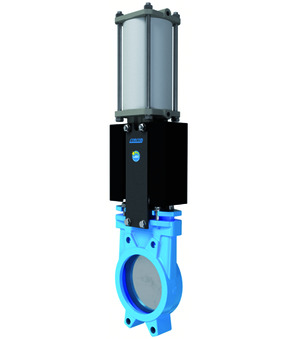

A1N3H4-5V-150-PI-B
Knife gate valve with double acting actuator; Wafer type; Body Cast iron EN-GJL-250; Gate 1.4301; Soft sealed PTFE; Packing PTFE-Synthetic/FKM; Screws Stainless steel; Nominal flange pressure PN16; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -15...+180 °C; DN 150mm; Length 60mm; Pressure range 0-10bar; Prepared for 2 mechanical switches MSU01
Intrastat No.: 84818061
Country of origin: Spain
Weight: 20.45 Kg
Short Itemnumber: A1N3H45V150PIB
Country of origin: Spain
Weight: 20.45 Kg
Short Itemnumber: A1N3H45V150PIB
knife gate valve with double acting actuator; wafer type; body cast iron EN-GJL-250; gate AISI 304; soft sealed PTFE; packing PTFE-synthetic/FKM; screws stainless steel; nominal flange pressure PN16; unidirectional sealed; control pressure 5,5...8bar; medium temperature -15...+180 °C; DN 150mm; length 60mm; pressure range 0-10bar; prepared for 2 mechanical switches MSU01
No Specifications
No spare parts are available for this product.
