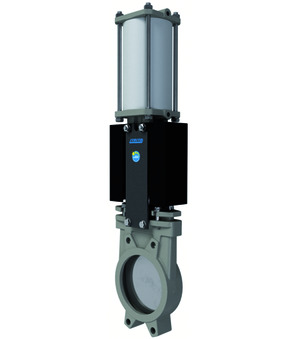

A1N2I3-5V-200
Knife gate valve with double acting actuator; Wafer type; Body 1.4408; Gate 1.4401; Soft sealed FKM; Packing PTFE-Synthetic/FKM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature 0...+180°C; DN 200mm; Length 60mm; Pressure range 0-10bar
Intrastat No.: 84818063
Country of origin: Spain
Weight: 37.0 Kg
Short Itemnumber: A1N2I35V200
Country of origin: Spain
Weight: 37.0 Kg
Short Itemnumber: A1N2I35V200
knife gate valve with double acting actuator; wafer type; body AISI 316; gate AISI 316; soft sealed FKM; packing PTFE-synthetic/FKM; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature 0...+180°C; DN 200mm; length 60mm; pressure range 0-10bar
No Specifications
No spare parts are available for this product.
