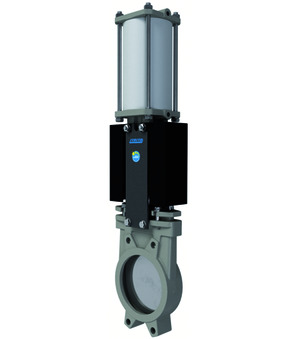

A1N2I2-5-300-PI01
Knife gate valve with double acting actuator; Wafer type; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90 °C; DN 300mm; Length 70mm; Pressure range 0-4bar; Prepared for 2 inductive limit switches M18; ATEX zone 1; Protection plates And Support plates Stainless steel
Country of origin: Spain
Weight: 0.61 Kg
Short Itemnumber: A1N2I25300PI01
knife gate valve with double acting actuator; wafer type; body AISI 316; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90 °C; DN 300mm; length 70mm; pressure range 0-4bar; prepared for 2 inductive limit switches M18; ATEX zone 1; protection plates and support plates stainless steel
| Design | ATEX |
