A1N2I2-5-100-PI-01

Name: A1N2I2-5-100-PI-01
Brand: STASTO
SKU: A1N2I2-5-100-PI-01
Price: 999999.0 RON
Availability: InStock

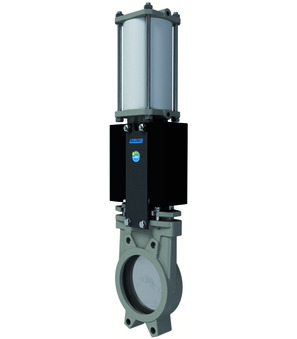

Knife gate valve with double acting actuator; Wafer type; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90 °C; Prepared for 2 limit switches M12x1; DN 100mm; Length 50mm; Pressure range 0...10bar

Intrastat No.: 84818063
Country of origin: Spain
Weight: 11.81 Kg
Short Itemnumber: A1N2I25100PI01

knife gate valve with double acting actuator; wafer type; body AISI 316; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90 °C; prepared for 2 limit switches M12x1; DN 100mm; length 50mm; pressure range 0...10bar
