A1N2HS2-5S-100-PIB

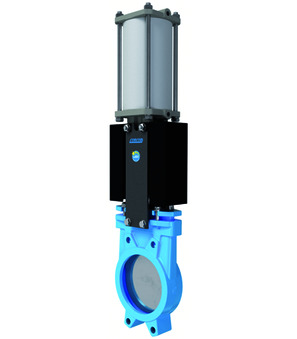

Knife gate valve with double acting actuator; Wafer type; Body Cast iron EN-GJL-250; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM With Copper Scraper; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90 °C; DN 100mm; Length 50mm; Pressure range 0-10bar; Prepared for 2 inductive limit switches M18
Country of origin: Spain
Weight: 12.45 Kg
Short Itemnumber: A1N2HS25S100PIB
knife gate valve with double acting actuator; wafer type; body cast iron EN-GJL-250; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM with copper scraper; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90 °C; DN 100mm; length 50mm; pressure range 0-10bar; prepared for 2 inductive limit switches M18
