A1N2H5-5N-150-B

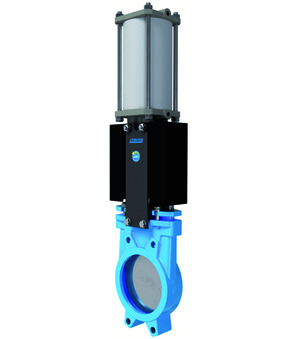

Gate valve with double acting pneumatic actuator Series A1N; Wafer type; Body Cast iron EN-GJL-250; Gate 1.4301; Soft sealed NBR; Packing PTFE-Synthetic/NBR; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -10...+90 °C; DN 150mm; Length 60mm; Pressure range 0-10bar
Intrastat No.: 84818061
Country of origin: Spain
Weight: 20.45 Kg
Short Itemnumber: A1N2H55N150B
Country of origin: Spain
Weight: 20.45 Kg
Short Itemnumber: A1N2H55N150B
gate valve with double acting pneumatic actuator series A1N; wafer type; body cast iron EN-GJL-250; gate AISI 304; soft sealed NBR; packing PTFE-synthetic/NBR; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -10...+90 °C; DN 150mm; length 60mm; pressure range 0-10bar
No Specifications
No spare parts are available for this product.
