A1N2H5-5-50-B

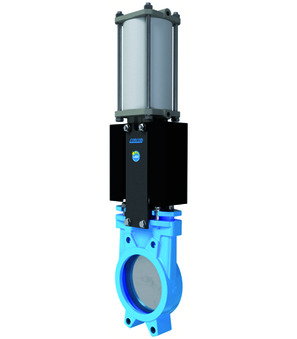

Knife gate valve with double acting actuator; Wafer type; Body Cast iron EN-GJL-250; Gate 1.4301; Soft sealed NBR; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90 °C; DN 50mm; Length 40mm; Pressure range 0-10bar
Intrastat No.: 84818061
Country of origin: Spain
Weight: 7.39 Kg
Short Itemnumber: A1N2H5550B
Country of origin: Spain
Weight: 7.39 Kg
Short Itemnumber: A1N2H5550B
knife gate valve with double acting actuator; wafer type; body cast iron EN-GJL-250; gate AISI 304; soft sealed NBR; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90 °C; DN 50mm; length 40mm; pressure range 0-10bar
No Specifications
No spare parts are available for this product.
