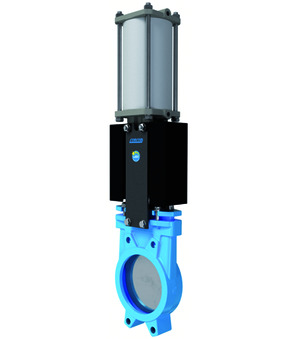

Knife gate valve with double acting actuator A1N2H2-5-500-B
Knife gate valve with double acting actuator Series A1N; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 500mm; Length 110mm; Pressure range 0…4bar
Country of origin: Spain
Weight: 21.14 Kg
Short Itemnumber: A1N2H25500B
Knife gate valve with double acting actuator Series A1N; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 500mm; Length 110mm; Pressure range 0…4bar
| dimension | |
|---|---|
| DN | 500 mm |
| Length | 110 mm |
| pressure | |
| Pressure range | 0...4 bar |
| characteristics | |
| Medium temperature | -5...+90 °C |
Data sheets, Instructions, 3D-files and Certificates...
