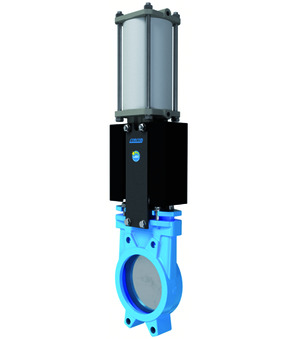

Knife gate valve with double acting actuator Series A1N2DI4-B-2EMB; Wafer type; Body Ductile iron EN-GJS-500-7; Gate 1.4401; Soft sealed PTFE; Packing PTFE-Synthetic; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -10...+180°C; Incl. 2 mechanical limit switches MSU01; DN 100mm; Length 50mm; Pressure range 0…10bar
Country of origin: Spain
Weight: 13.0 Kg
Short Itemnumber: A1N2DI4B1002EMB
knife gate valve with double acting actuator series A1N2DI4-B-2EMB; wafer type; body ductile iron EN-GJS-500-7; gate AISI 316; soft sealed PTFE; packing PTFE-synthetic; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -10...+180°C; incl. 2 mechanical limit switches MSU01; DN 100mm; length 50mm; pressure range 0…10bar
Technical specifications
| Pressure range | 0...10 bar |
|---|---|
| DN | 100 mm |
| Length | 50 mm |
| Pressure range | 0...10 bar |
| DN | 100 mm |
| Length | 50 mm |
