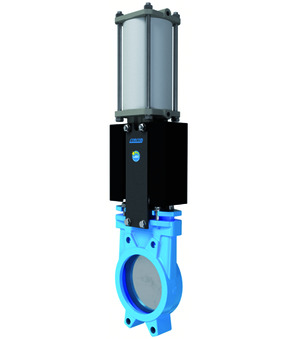

A1N1H1-5-150-PMB
Knife gate valve with double acting actuator; Wafer type; Body Cast iron EN-GJL-250; Gate 1.4301; Metal sealing; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5…+90°C; DN 150mm; Length 60mm; Pressure range 0-10bar; Prepared for 2 mechanical switches MSU01
Intrastat No.: 84818061
Country of origin: Spain
Weight: 20.85 Kg
Short Itemnumber: A1N1H15150PMB
Country of origin: Spain
Weight: 20.85 Kg
Short Itemnumber: A1N1H15150PMB
knife gate valve with double acting actuator; wafer type; body cast iron EN-GJL-250; gate AISI 304; metal sealing; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5…+90°C; DN 150mm; length 60mm; pressure range 0-10bar; prepared for 2 mechanical switches MSU01
No Specifications
No spare parts are available for this product.
