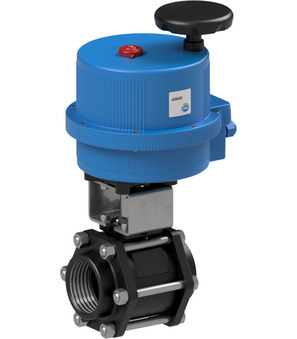

Ball valve with electrical actuator 8E004004-3"

Ball valve with electrical actuator 8E004004-3"

Ball valve with electrical actuator Series 8E004; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 3"; DN 80mm; Pressure range 0-16bar; Length 180mm; Operating time 27s; Voltage 100-240VAC

Kugelhahn mit Elektroantrieb Serie 8E004
Intrastat No.: 84818081
Country of origin: Italy
Weight: 18.52 Kg
Short Itemnumber: 8E0040043
https://www.stasto.ro/web/image/product.template/76084/image_1920?unique=8bc9da3

Ball valve with electrical actuator Series 8E004; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 3"; DN 80mm; Pressure range 0-16bar; Length 180mm; Operating time 27s; Voltage 100-240VAC

7.759,60 lei 7759.6 RON 7.759,60 lei

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
Female thread RP 3"
DN 80 mm
Length 180 mm
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...16 bar
Female thread RP 3"
DN 80 mm
Length 180 mm
Operating time 27 s
Voltage 100-240VAC

8E004004-3"

Documents

2 Documents 7 Languages

Czech / Čeština
ZIP

Declarations of Conformity

1

CAD / 3D

1
German / Deutsch
ZIP

Declarations of Conformity

1

CAD / 3D

1
English
ZIP

Declarations of Conformity

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Declarations of Conformity

1

CAD / 3D

1
Polish / Język polski
ZIP

Declarations of Conformity

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Declarations of Conformity

1

CAD / 3D

1
Ball valve made of steel 713000-3"
713000-3" x 1.0 Pcs
Ball valve made of steel 713000-3"
Ball valve made of steel Series 713000; Full bore; Three-parts type; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 3"; Nominal diameter 80mm; Pressure range 0-16bar; Length 180mm
Electrical actuator VB110-H
VB110-H x 1.0 Pcs
Electrical actuator VB110-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67
RI3003 x 1.0 Pcs
RI3003
Mounting bracket; F07/F07; 17-14
